PRS HDRX-Verstärker sorgen für Leistung und Ausgewogenheit. Der PRS HDRX-Verstärker verfügt über einen neu dokumentierten Hendrix Touring Circuit und ist stark von einem von Hendrix‘ persönlichen Verstärkern inspiriert, die angeblich in Woodstock verwendet wurden und den Paul Reed Smith und der PRS-Verstärkerdesigner Doug Sewell studieren konnten.

PRS HDRX amps bring power and balance. Featuring a newly-documented Hendrix Touring Circuit, the PRS HDRX amp is heavily inspired by one of Hendrix’s personal amps purportedly used at Woodstock, which Paul Reed Smith and PRS Amp Designer Doug Sewell were able to study. The PRS HDRX is designed to push the high-end so it is very clear, but not so much that it’s harsh, so the amp shines without glaring and allows for aggression that can be backed off for smooth, sweet tones.

Specs:

Available Configurations
Head Only
ELECTRONICS
Wattage:20
TUBES
Power Tubes:(2) 5881 or 6L6WGC-STR Short Bottle
Preamp Tubes:(3) 12AX7 / ECC83

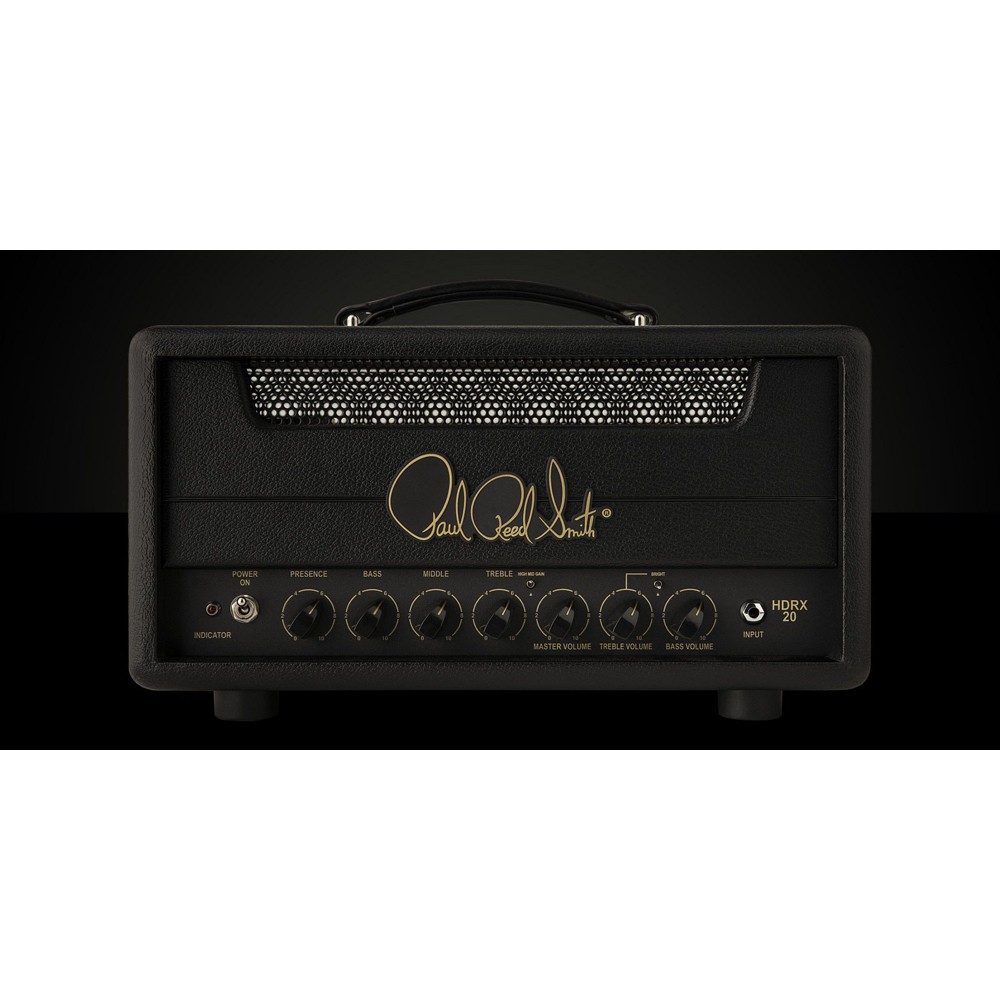

FRONT PANEL CONTROLS
Global Controls:Master Volume, High Mid Gain Switch (off/on), Treble, Middle, Bass, Presence
Front Panel Controls:Channel 1 Controls – Bass Volume ,Channel 2 Controls – Treble Volume, Bright (on/off)

Note: Channels 1 and 2 are internally bridged

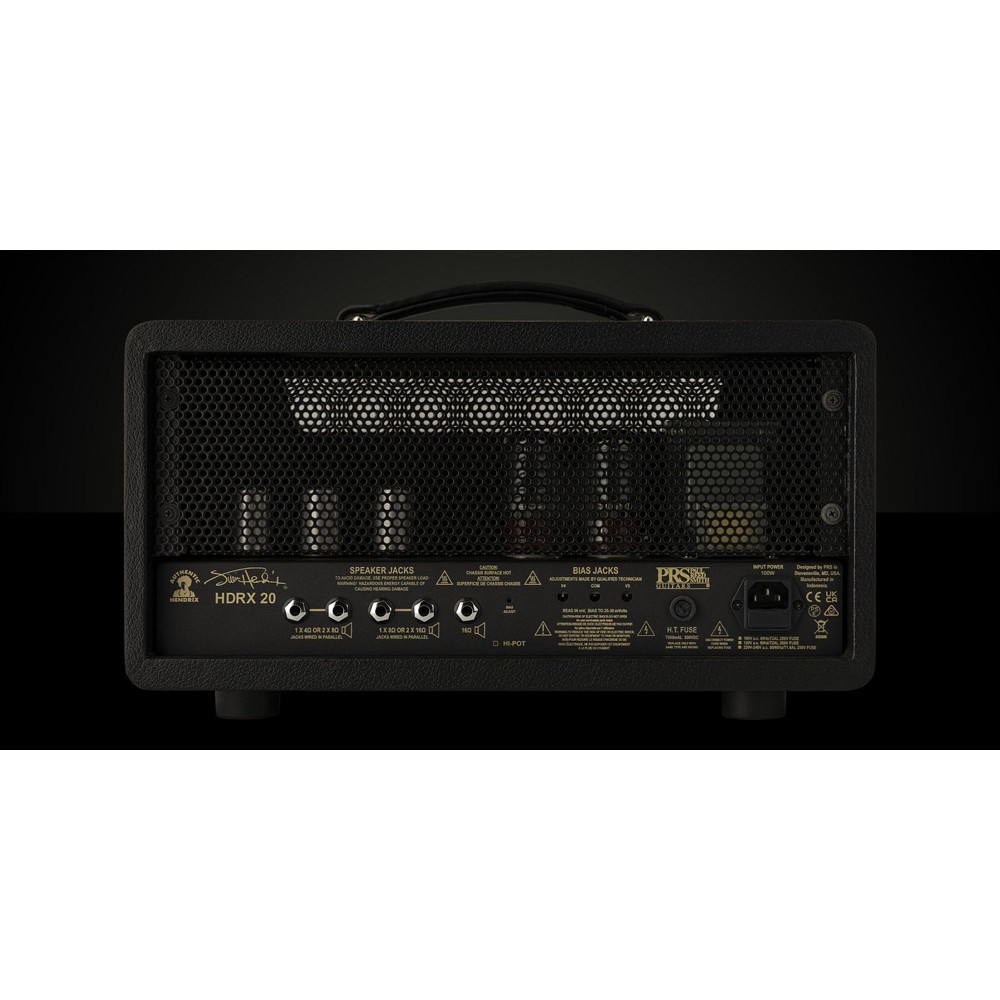

BACK PANEL FEATURES
Inlet:Fused Power Inlet (IEC)
Extension Speaker Jacks:5
Ohm Switching:(2) 4 ohm & (2) 8 ohm parallel, (1) 16 ohm
Bias:Adjustable with Monitoring Jacks
HARDWARE
Covering:Black Tolex
Piping:Black
Panel:Black Tolex
MEASUREMENTS
Amp Width:17.25” (43.82 cm)
Amp Depth:9” (22.86 cm)
Amp Height:9” (22.86 cm)
Amp Weight:27.6 lbs (12.52 kg)
PREAMP TUBE POSITIONS & FUNCTIONS
V1:Input
V2:Cathode Follower
V3:Phase Inverter
