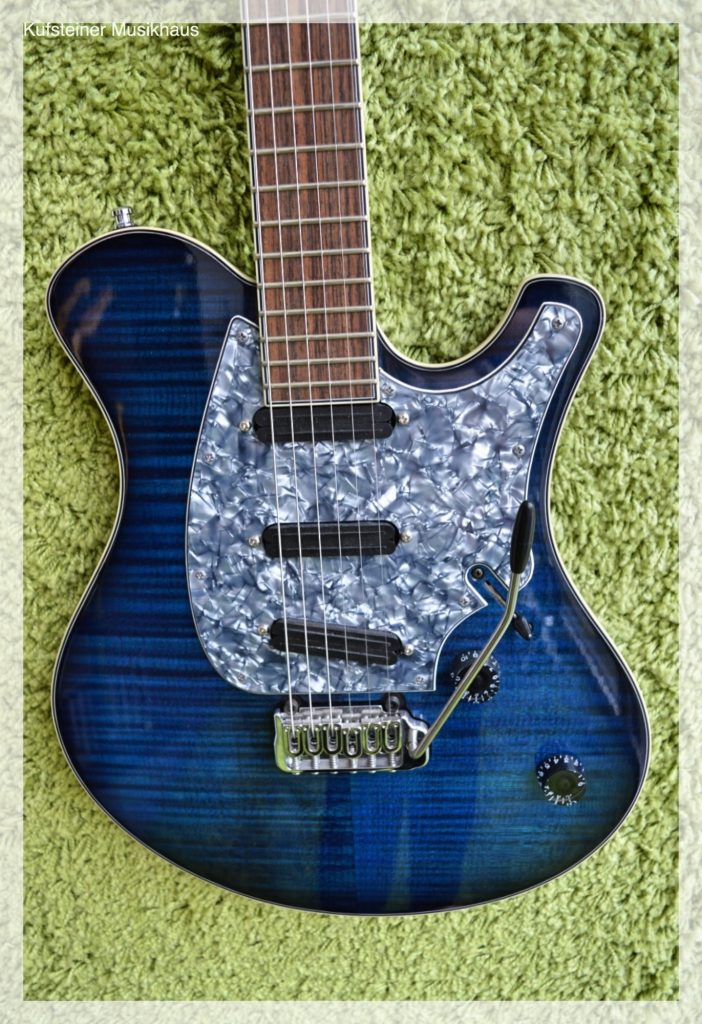

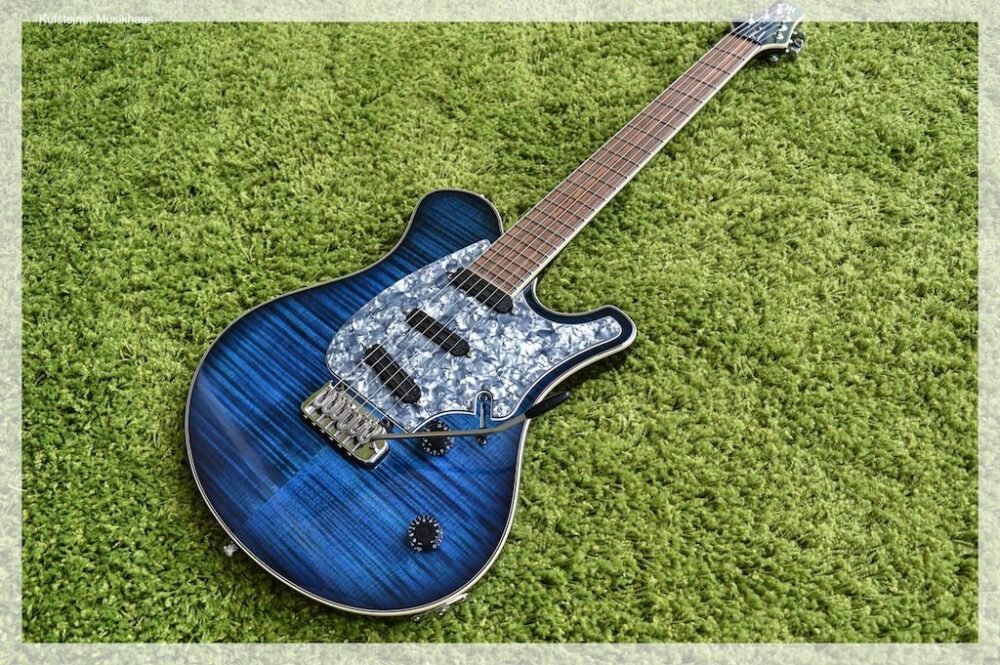

Mayones Legend is our proposal for the old time enthusiasts. Following the fashionable trend for vintage instruments we created a 22 fret guitar that recalls the times when rock’n’roll was born.
The series feature traditional materials and accessories. An alder body is combined with a 22 fret, set-in maple neck and maple or rosewood fretboard.
The hardware consist of several different pickup configurations, Hipshot US Contour Tremolo bridge and Schaller locking tuners for an excellent tuning stability.
Neck dimensions
Width at nut – 43 mm
Width XII fret – 51 mm
Width XXIV fret – 56 mm
Thickness I fret – 20.5 mm
Thickness XII fret – 21.5 mm
Fingerboard
Maple or Rosewood
3-ply binding
Fingerboard Radius
16" (406 mm)
Scale
25.4" (645 mm)
Frets
22 medium jumbo 18%NS Ferd Wagner 9665 2.64×1.20 mm (w×h)
Markers & inlays
Plain, no markers + side dots

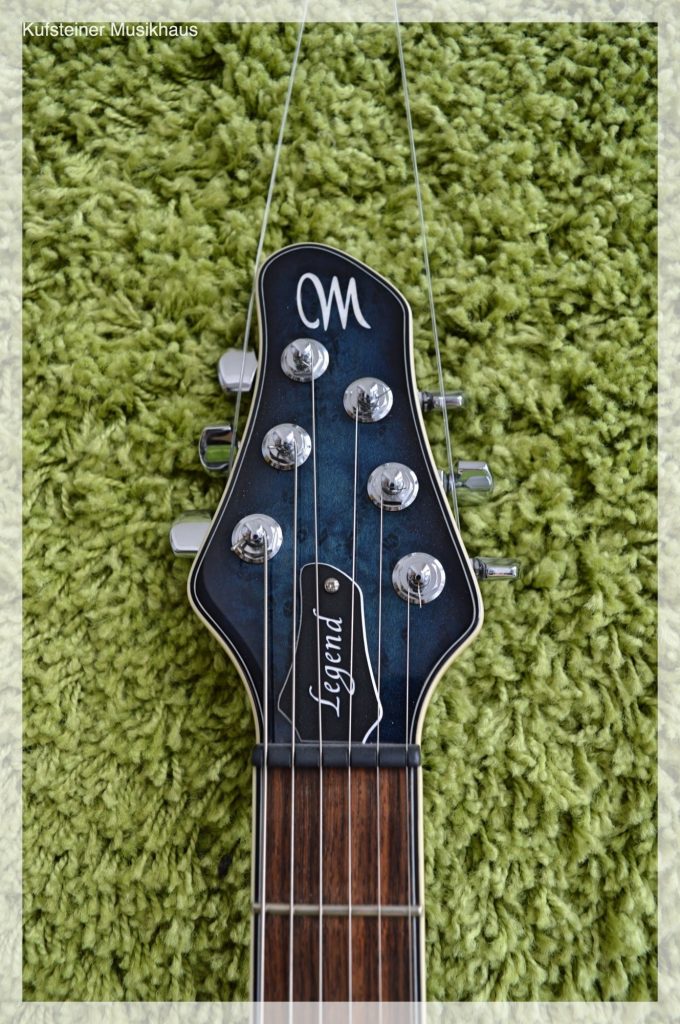

Headstock
Angled; topped with figured Maple
3-ply binding

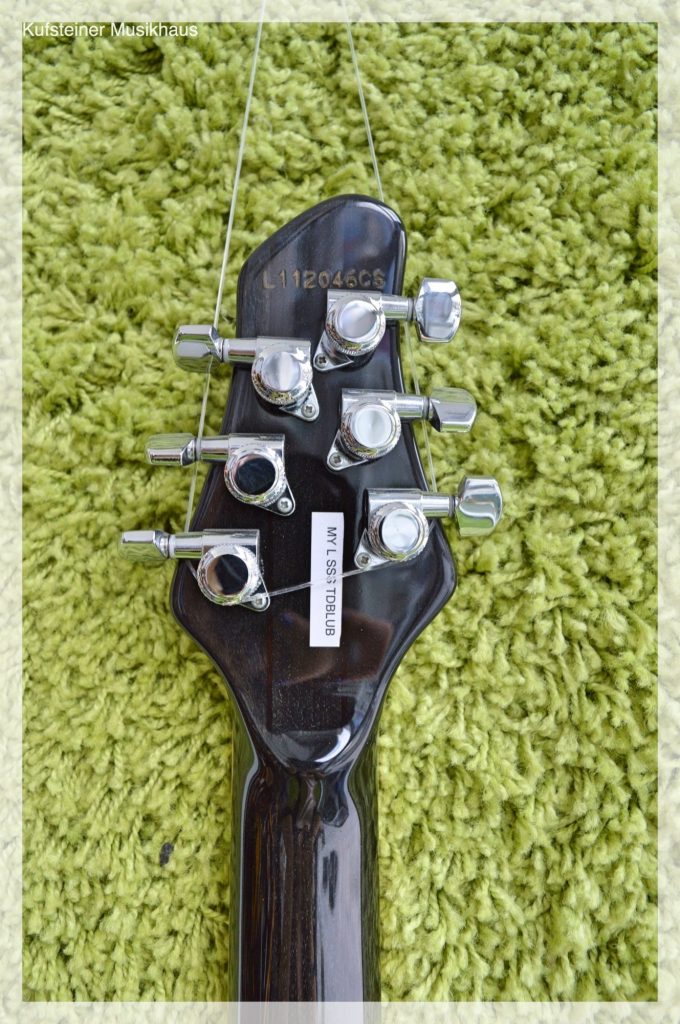

Tuners
Schaller M6 Locking
Bridge
Hipshot US Contour Tremolo
Pickups / Electronics
Other Brands, Models and Configuration of pickups – on request
(extra fee may be required)
Control
1x Volume + 1xTone
3-way lever pickup switch (S-S or H-H configuration)
5-way lever pickup switch (S-S-S, S-S-H, H-S-H or H-H-H configuration)
Knobs
Speed Knobs
Bell Knobs
Q-Parts knobs / Extra fee required

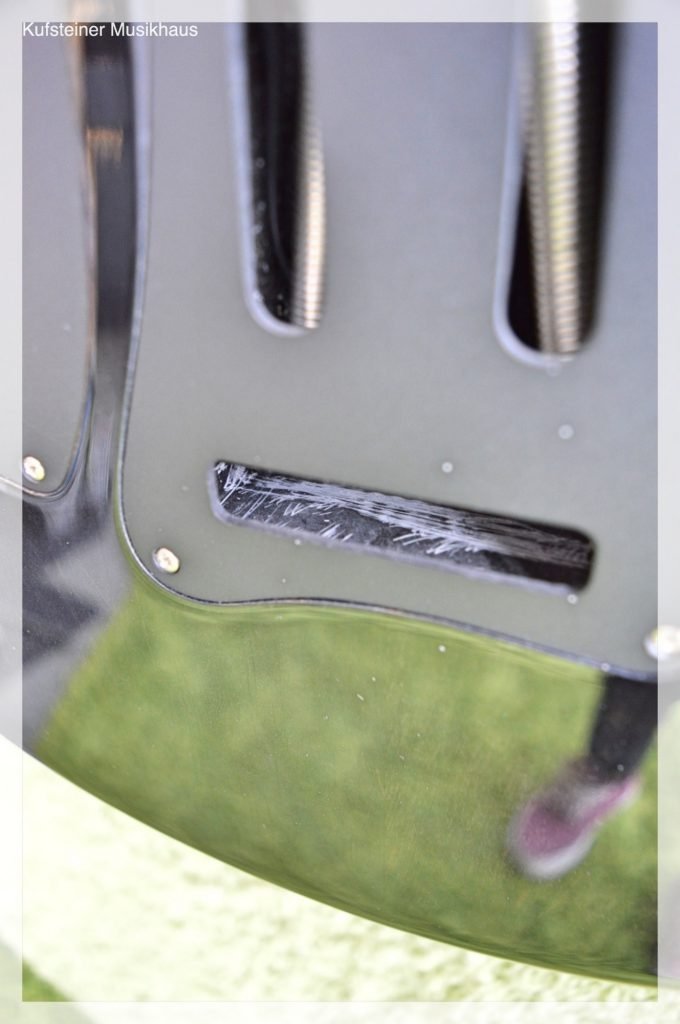

Pickguard
3-ply / White Pearl
3-ply / Grey Pearl
3-ply / Black Pearl
3-ply / Black
3-ply / White
No pickguard available for H-H and H-H-H P90 configurations
Body finish (front)
Transparent Dirty Blue Light Burst / Gloss finish (T-DBLU-LB-G)
Body finish (back)
Transparent Blue / Gloss finish (T-BLU-G)
Neck finish
Transparent Black / Gloss finish (T-BLK-G)
