DV Mark keeps creating tools revolutionizing the classics to present days, in a word … EVOLUTION!
We know there are many amps that have cool tones, but one of the biggest problem in the sea of choices is they deliver their tone in one unique way, and it is not always the ‘right’ sound for each unique performance.
NOW the ideal amp does exist… the DV MARK EVO 1.
Thanks to six AMPS tone choices for each channel many cool options come with this rEVOlutionary amp, plus you can update them with other preferred amps you can download from our website.
The DV MARK EVO 1 features two channels with a classic standard amp controls interface, reverb control for each, MIDI IN, on board tuner, aux in and headphones out, FX loops, XLR Line Out, Boost, and a powerful 250W MPT (Mark Proprietary Technology) power amp with an impressive warm tone and incredible dynamic.
INPUTS
INPUT 1 (passive): impedance 1MΩ
INPUT 2 (active): impedance 1MΩ
AUX IN: stereo mini-jack 3.5mm
RETURN 1 / RETURN 2: mono jack 1/4″
USB: type B
MIDI: DIN 5 poles

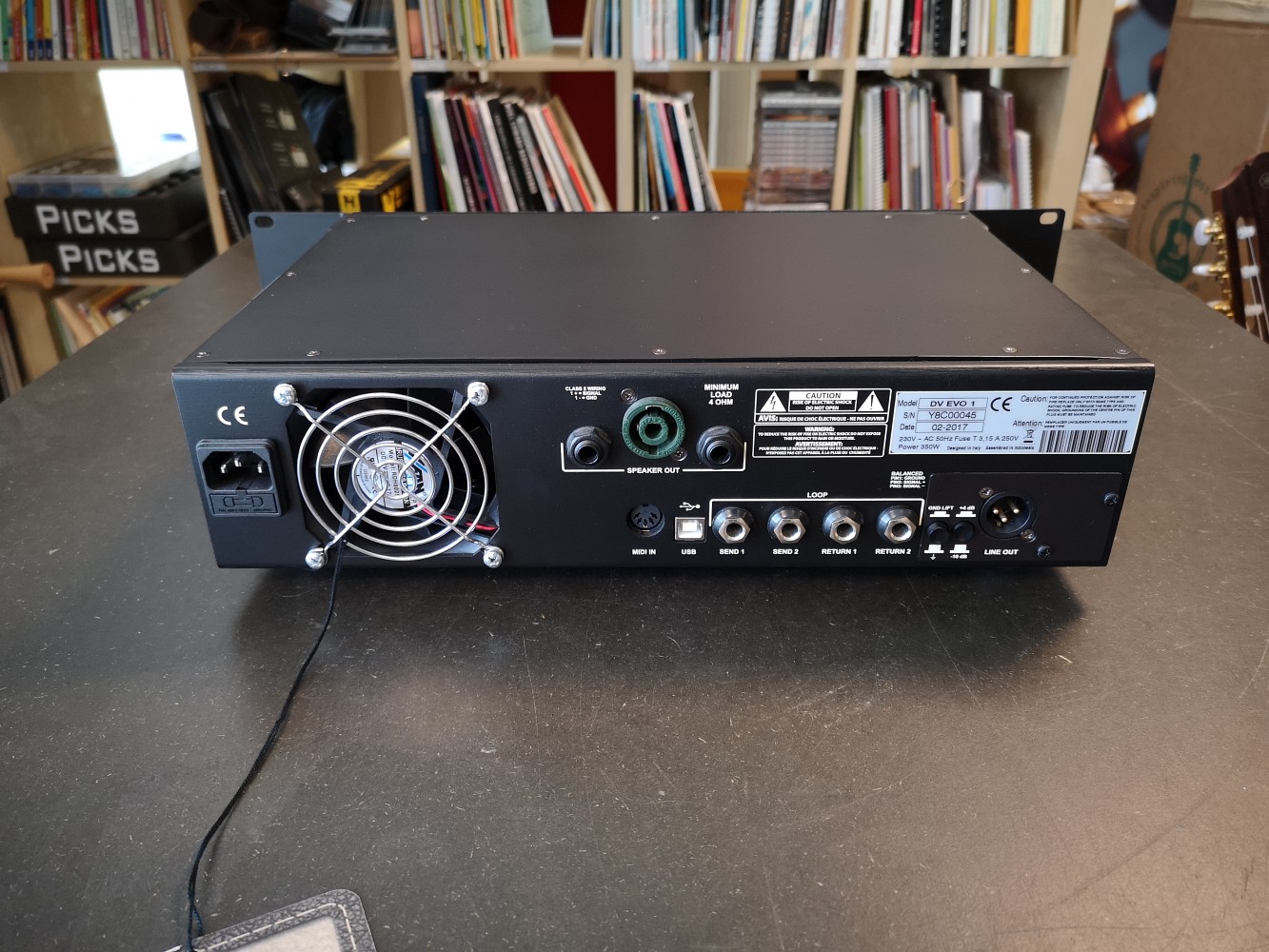

OUTPUTS
SPEAKER OUTPUT (4ohms minimum load)
two mono jack 1/4″ + one Speakon (in parallel)
PHONES : stereo mini-jack 3.5mm
SEND 1 / SEND 2: mono jack 1/4″
XLR LINE OUT
CAB/Speaker Emulator is assignable to this output using the DV Mark EVO 1 software.
CHANNELS
TWO (with six Virtual AMPs per channel)
EQUALIZATION (per channel)
LOW-MID-HIGH

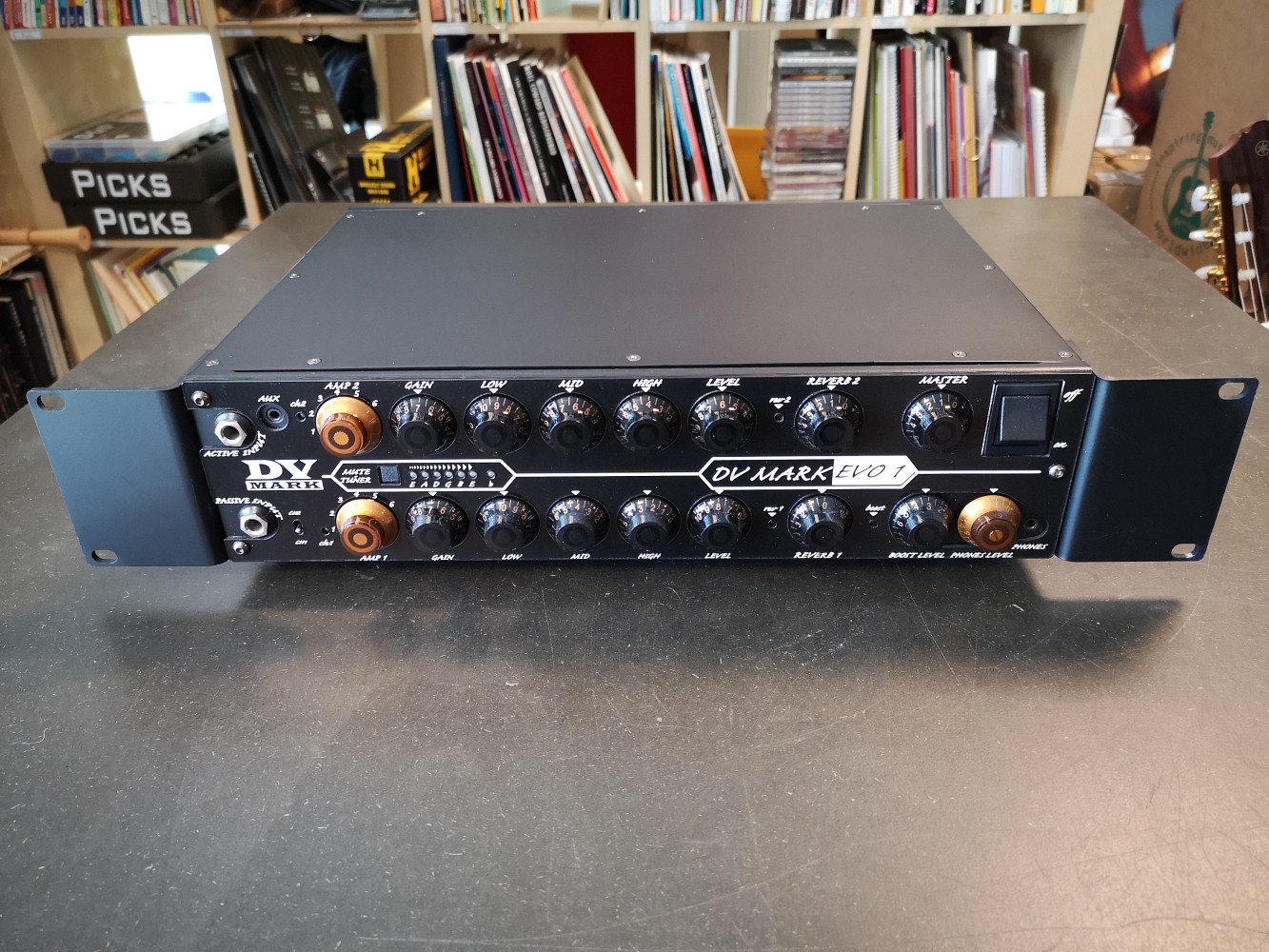

CONTROLS
GAIN (per channel)
AMPS Selection: 6 for CH1 / 6 for CH2
LEVEL (per channel)
REV 1
REV 2
MASTER
PHONE LEVEL
BOOST
MIDI FUNCTIONS
Switch CH1, CH2
FX1 ON/OFF, FX2 ON/OFF
BOOSTER ON/OFF
MUTE/TUNER
Controllable by the optional EVO1 Controller / MIDI Pedalboard
OTHER FEATURES
Channels Switch
+4dB / -10dB and GND Lift switches (LINE OUT)
TUNER (with MUTE function)
440Hz / half step down / whole step down modes
DIMENSIONS
14.18”/ 36 cm (w); 3.94”/ 10 cm (h); 10”/ 25.4 cm(d)
WEIGHT
7.05 lbs / 3.2 Kg
OUTPUT POWER (MPT Power Amp)
250W RMS @ 4 ohms, 150W RMS @ 8 ohms
POWER REQUIREMENT
100/120V; 230V; 240V
50/60Hz
(Voltage is factory preset according to region of sale)
DV Mark amps/combos are manufactured to be sold and used in the country of purchase, and are factory preset to that country’s voltage.
Due to homologation issues, the voltage may not be changed.
