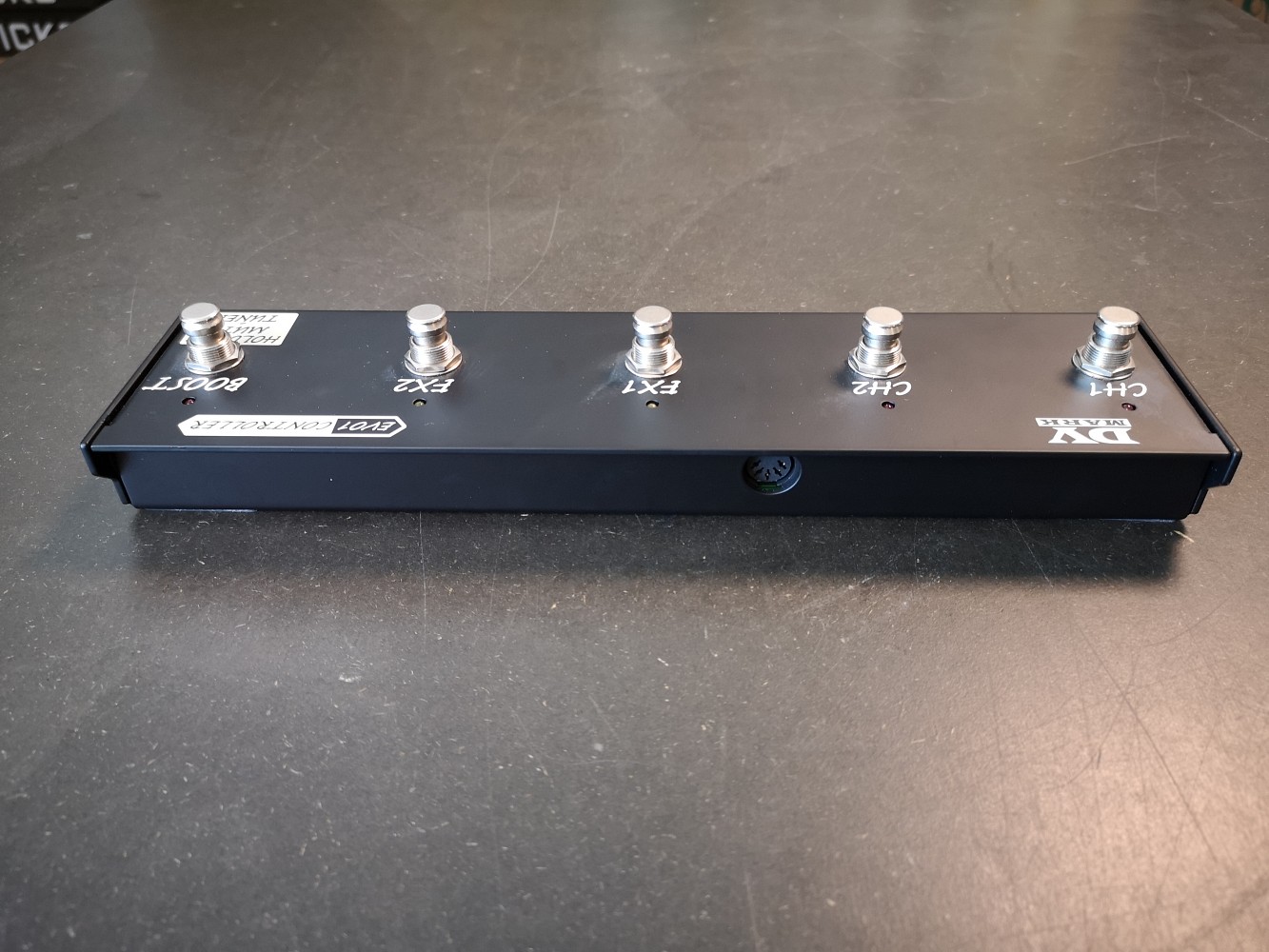

The optional DV Mark EVO 1 CONTROLLER allows to switch between CH1 and CH2, turn on/off the REV1, REV2 and BOOST, plus accessing the TUNER with MUTE function pressing and holding the boost switch. The EVO 1 can be controlled also via programmable MIDI pedalboard.
SWITCHES: FIVE
CH1 – MIDI program change #1
CH2 – MIDI program change #2
FX1 – MIDI control change #1
FX2 – MIDI control change #2
BOOST – MIDI control change #3
(hold for mute/tuner) – MIDI control change #28
MIDI OUT: DIN 5 poles
The MIDI TX CHANNEL is setted on #0
POWER REQUIREMENT: 9VDC
(via MIDI cable)
